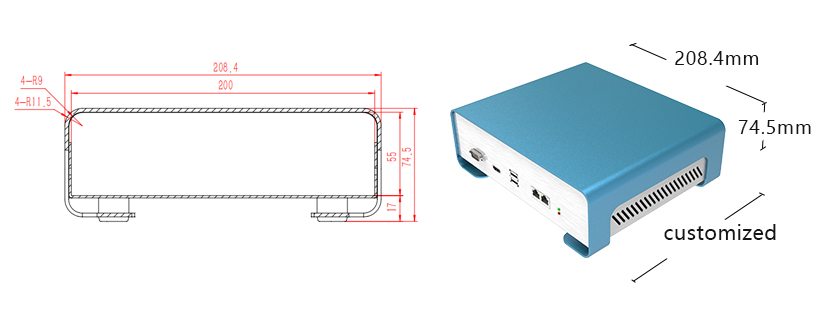

• YONGU Customized Dimension Aluminum Bending Electronic Equipment Enclosures E03 208.4*74.5mm

    Description QTY(PCS)
    Shell
    Front panel
    Real panel
    1
    1
    1
    Feet 4
    Screws
    Material
    Surface fishing
    8
    AL6063
    Anodized
    Inquiry
    Electronics Enclosure

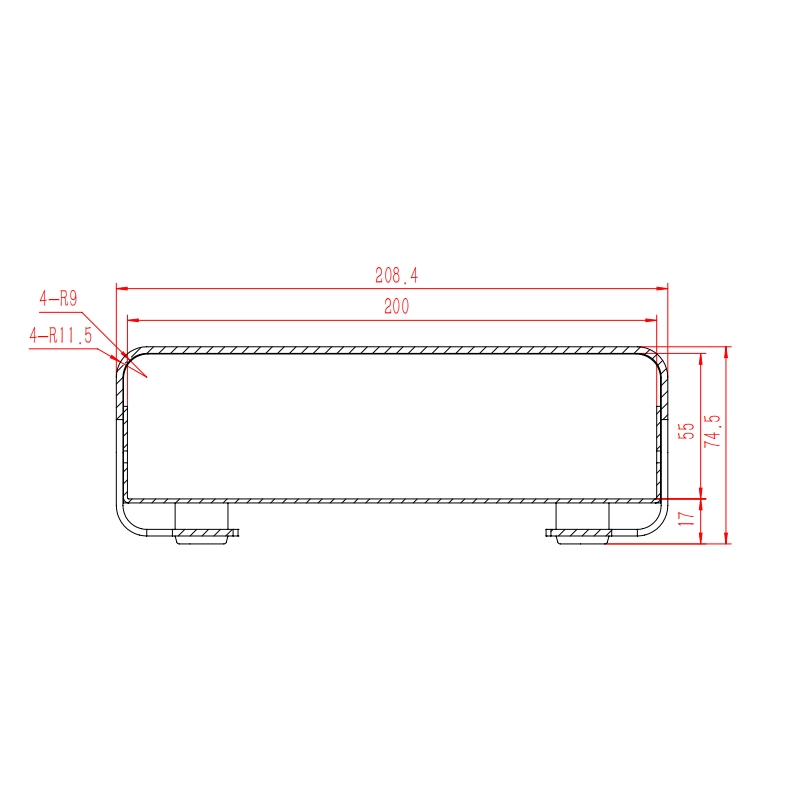

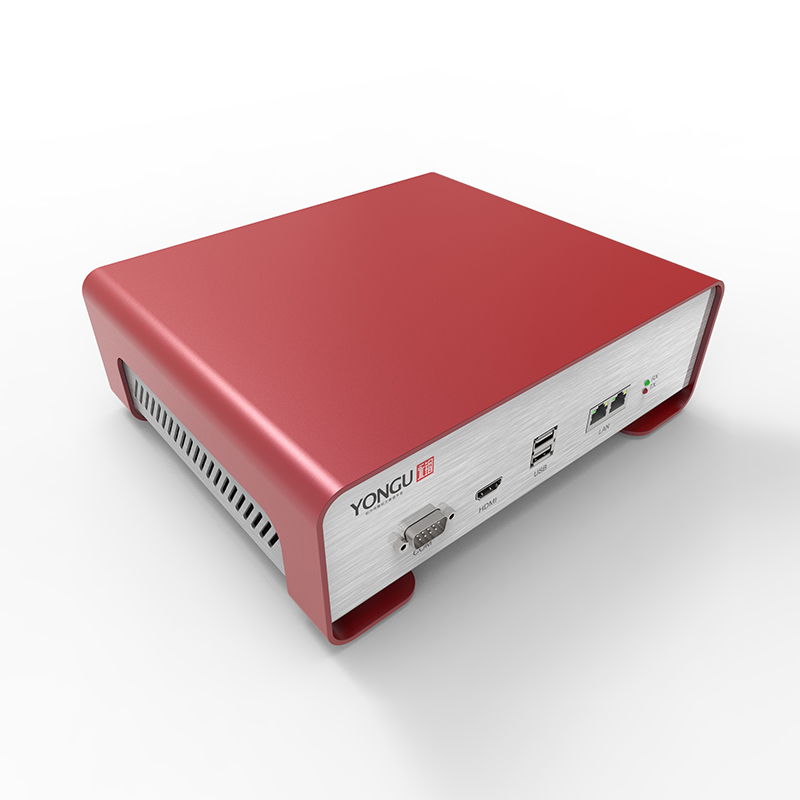

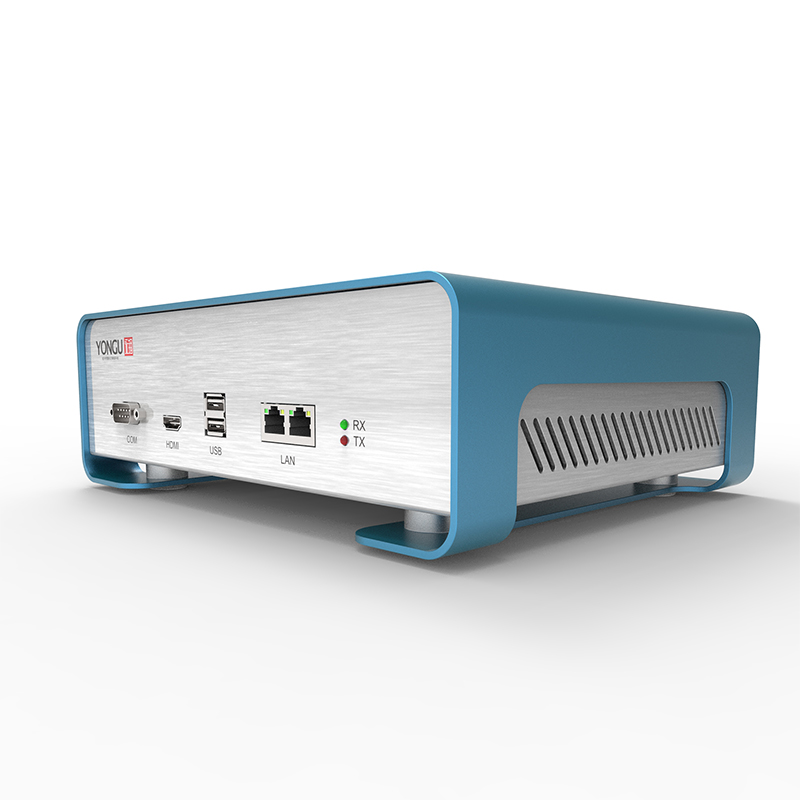

    YONGU Customized Dimension Aluminum Bending Enclosure E03 208.4*74.5mm

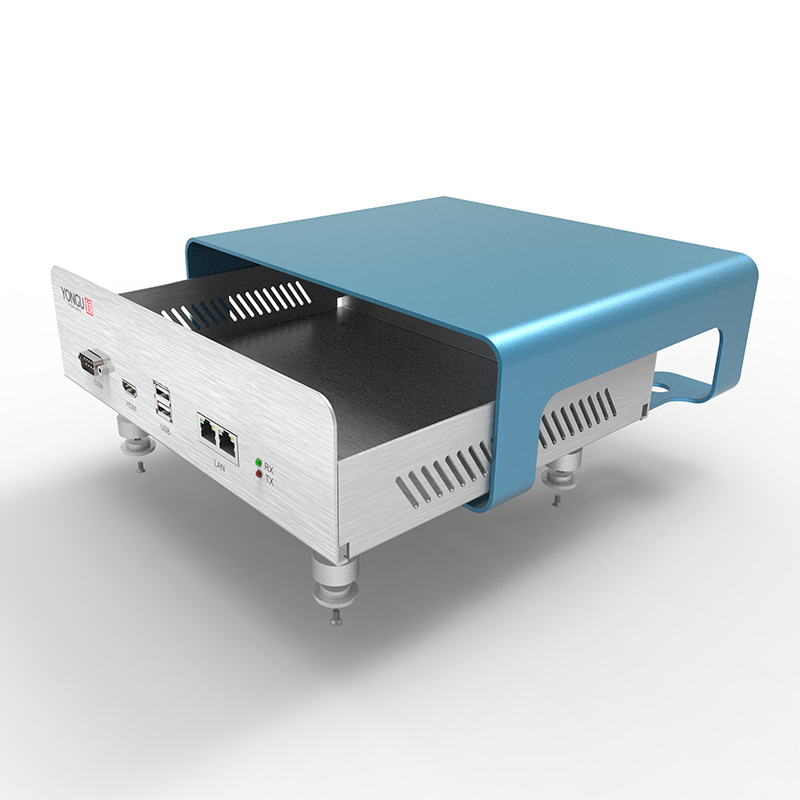

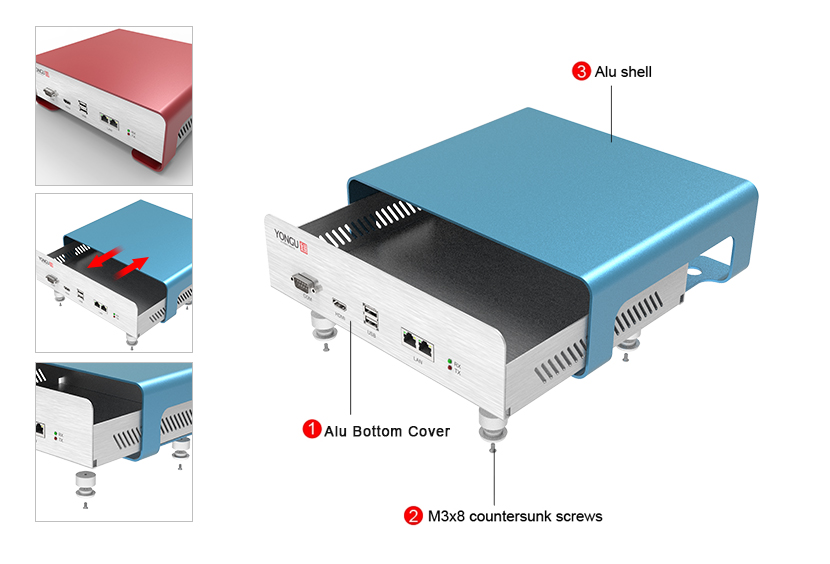

    The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.The internal card slot
    designis easy for pcb assembly installation. It is widely used in equipment for communication, medical, teaching experiment,
    environmental monitoring and testing, industrial control,rail transit, vehicle terminal, security and protection, electronics,
    instrument and meter industrial.



    Superiority:
    1.Designed to house P.C.boards or equipment
    2.General Purpose,water-Tight,EMI shielded,or Heat Dissipation Options
    3.Sandblast and brushed surface finishing options,Anodized color
    4.P.C.boards mount horizontally by sliding into internal slots extruded into the enclosure body
    5.Acceptable for customization:Length,cuouts,milling,L shape and panels option,thickness and panel
    option,silkscreen or engraving option




    electronic equipment enclosures

      Product Name   Waterproof Aluminum Enclosure
      Material   Aluminum
      Color Customization   Gold, blue, black, silver, yellow, white, red, etc.
      Surface Treatment   Brush, sandblast, anodize, silk-screen print
      Type   Drilling, Etching / Chemical Machining, Laser Machining, Milling
      CNC Machining Or Not   CNC Machining
      Micro Machining Or Not   Micro Machining
      Optional Service   3 4 5 6 Axis CNC Machining Service
      OEM/ODM   Accept
      Drawing Format   dwg,dxf,step,iges,pdf,jpg,ai,cdr
      Surface finishing   Anodized
      Stocking size   L:100mm
      Optional customized service   Length/holes milling/flange/silkscreen/engraving/colors
      MOQ   1 pcs

    We offered customized service for changeable width, height, length, designing service for outer surface, structure and
    CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
    complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
