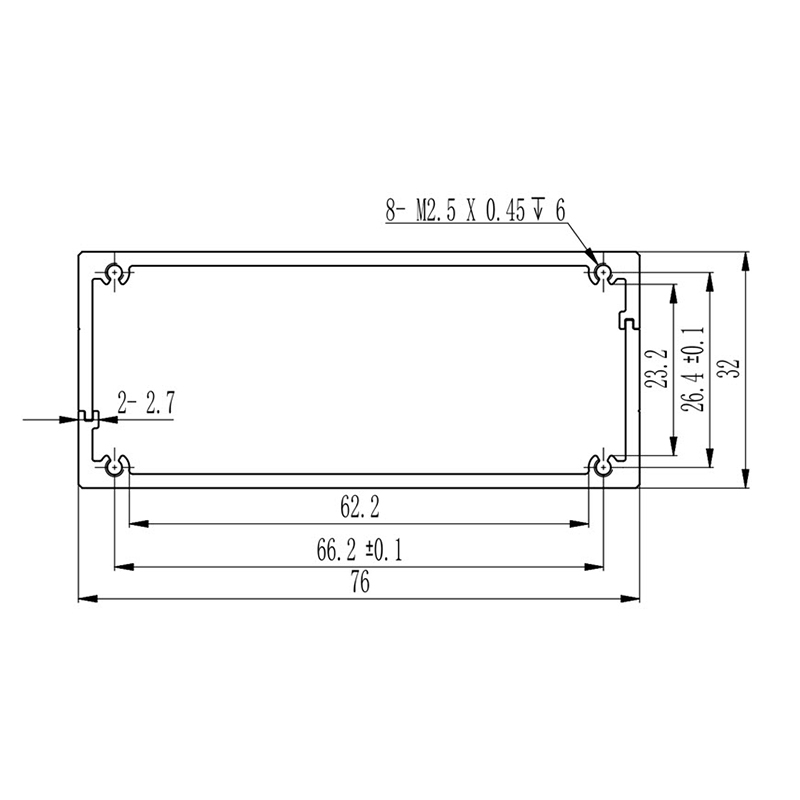

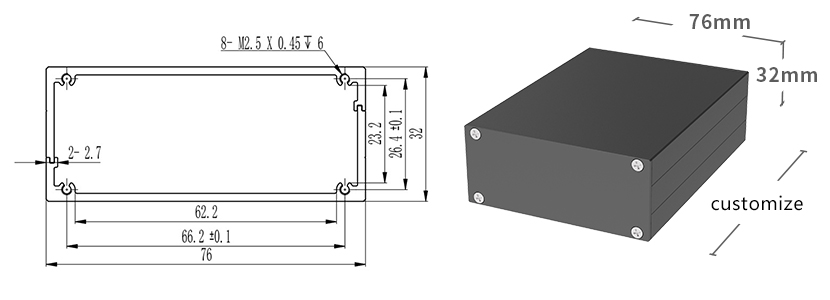

• YONGU Cutomized CNC Machining PCB Extruded Split Aluminum Enclosure H48 76*32mm

    Description QTY(PCS)
    Top Box
    Bottom Box
    1
    1
    Rear panel 1
    Front panel 1
    Screws 8
    Material AL6063
    Surface treatment Anodizing
    Inquiry Download
    Split Aluminum Shell

    YONGU Cutomized CNC Machining PCB Extruded Split Aluminum Enclosure H48 76*32mm

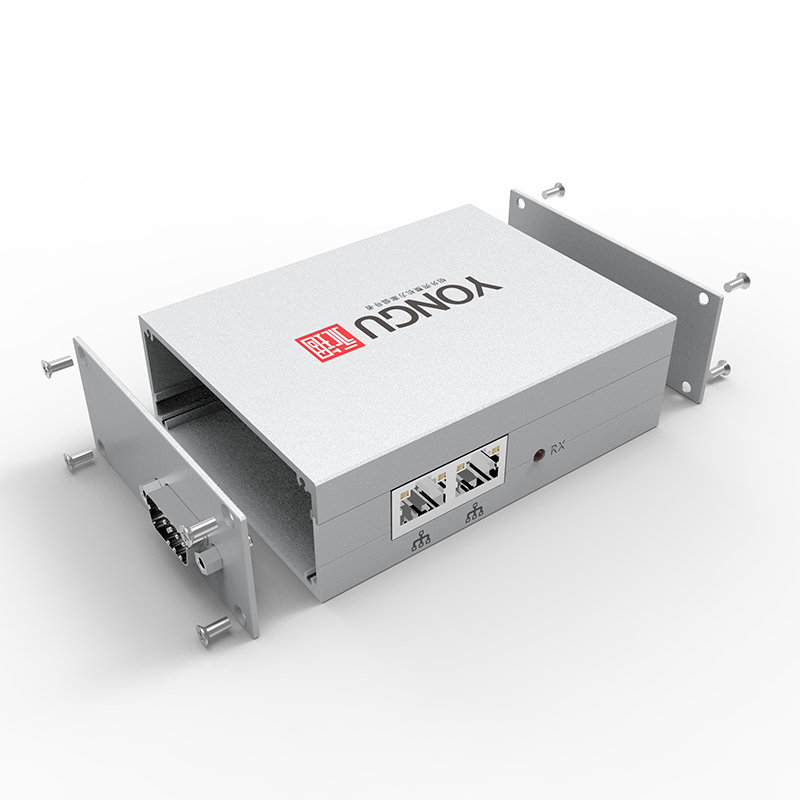

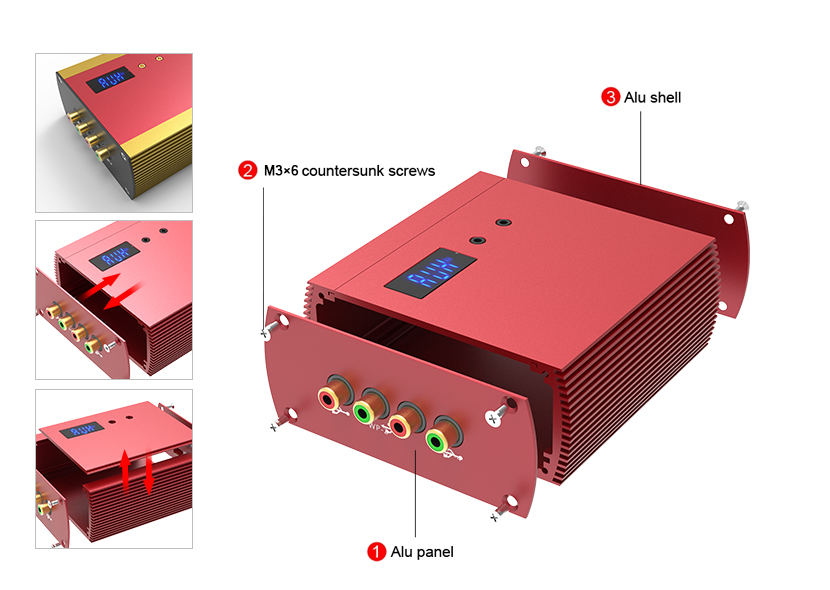

    The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.
    The internal card slot designis easy for pcb assembly installation. It is widely used in equipment for communication,
    medical, teaching experiment, environmental monitoring and testing, industrial control, rail transit, vehicle terminal,
    security and protection, electronics, instrument and meter industrial..






    Superiority:
    1.Two piece body-with easily removable belly plate for easy access to top interior of enclosure.
    2.General Purpose, EMI Shielded or Heat Dissipation Options.

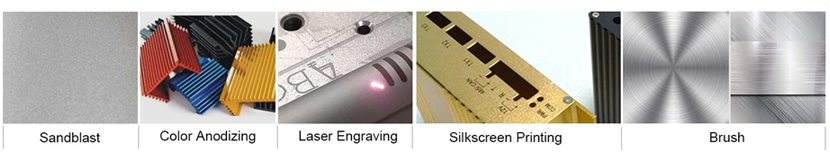

    3.Sandblast and brushed surface finishing options, Anodized color
    4.P.C boards mount horizontally by sliding into internal slots extruded into the enclosure body.
    5.Acceptable for customization:length,customs,milling ,L shape end panel option,thickness end panel option,
    silkscreen or engraving option




    extruded aluminum enclosure profiles


      Product Name  Split Aluminum enclosure
      Material   Aluminum
      Color Customization   Gold, blue, black, silver, yellow, white, red, etc.
      Surface Treatment   Brush, sandblast, anodize, silk-screen print
      Type   Drilling, Etching / Chemical Machining, Laser Machining, Milling
      CNC Machining Or Not   CNC Machining
      Micro Machining Or Not   Micro Machining
      Optional Service   3 4 5 6 Axis CNC Machining Service
      OEM/ODM   Accept
      Drawing Format   dwg,dxf,step,iges,pdf,jpg,ai,cdr
      Surface finishing   Anodized
      Stocking size   L:180mm
      Optional customized service   Length/holes milling/flange/silkscreen/engraving/colors
      MOQ   1 pcs

    We offered customized service for changeable width, height, length, designing service for outer surface, structure and
    CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
    complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
