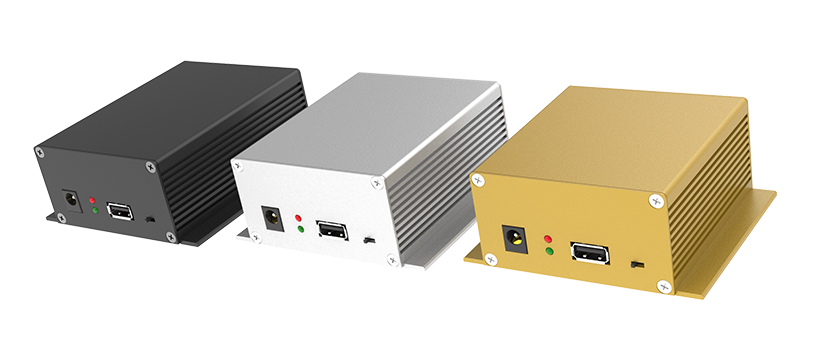

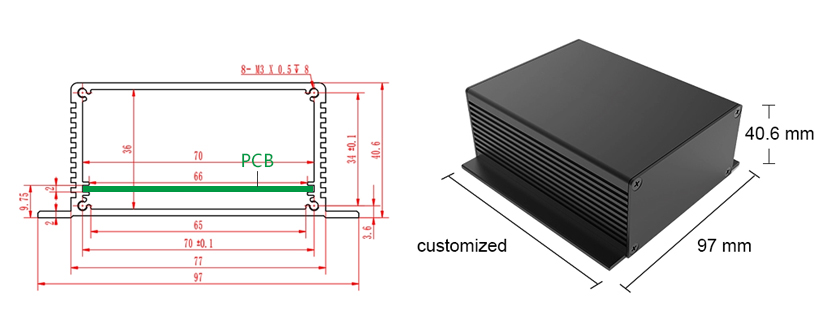

YONGU  Good Corrosion Resistance Enclosure 3.2V 100Ah Lifepo4 Battery Extruded Aluminum Box J26 97*40.5mm

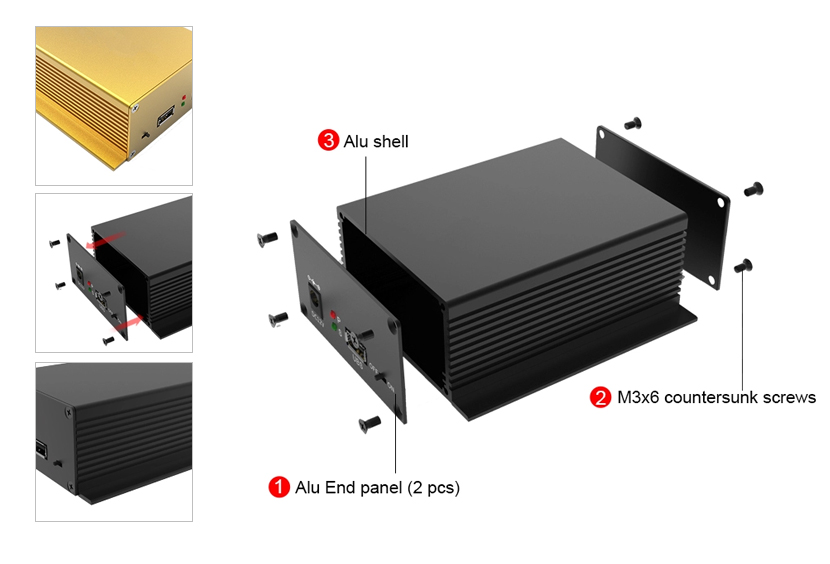

The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.The internal card slot
designis easy for pcb assembly installation. It is widely used in equipment for communication, medical, teaching experiment,
environmental monitoring and testing, industrial control,rail transit, vehicle terminal, security and protection, electronics,
instrument and meter industrial.



Superiority:
1.Designed to house P.C.boards or equipment
2.General Purpose,water-Tight,EMI shielded,or Heat Dissipation Options
3.Sandblast and brushed surface finishing options,Anodized color
4.P.C.boards mount horizontally by sliding into internal slots extruded into the enclosure body
5.Acceptable for customization:Length,cuouts,milling,L shape and panels option,thickness and panel
option,silkscreen or engraving option



electronic equipment enclosures


Product Name	Waterproof Aluminum Enclosure
Material	Aluminum
Color Customization	Gold, blue, black, silver, yellow, white, red, etc.
Surface Treatment	Brush, sandblast, anodize, silk-screen print
Type	Drilling, Etching / Chemical Machining, Laser Machining, Milling
CNC Machining Or Not	CNC Machining
Micro Machining Or Not	Micro Machining
Optional Service	3 4 5 6 Axis CNC Machining Service
OEM/ODM	Accept
Drawing Format	dwg,dxf,step,iges,pdf,jpg,ai,cdr
Surface finishing	Anodized
Stocking size	L:90/100/110/120mm
Optional customized service	Length/holes milling/flange/silkscreen/engraving/colors
MOQ	1 pcs

We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
