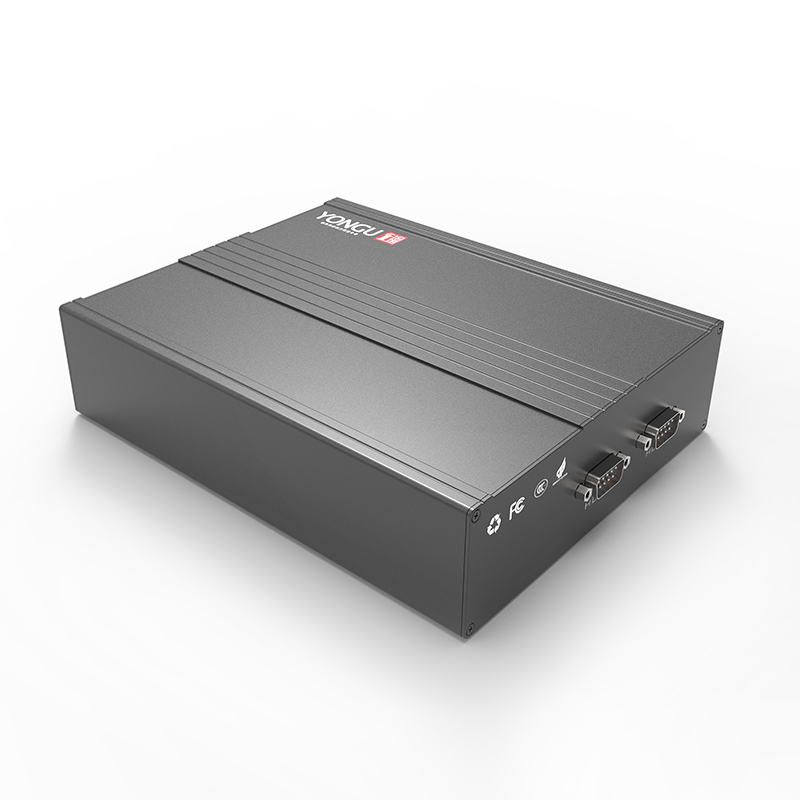

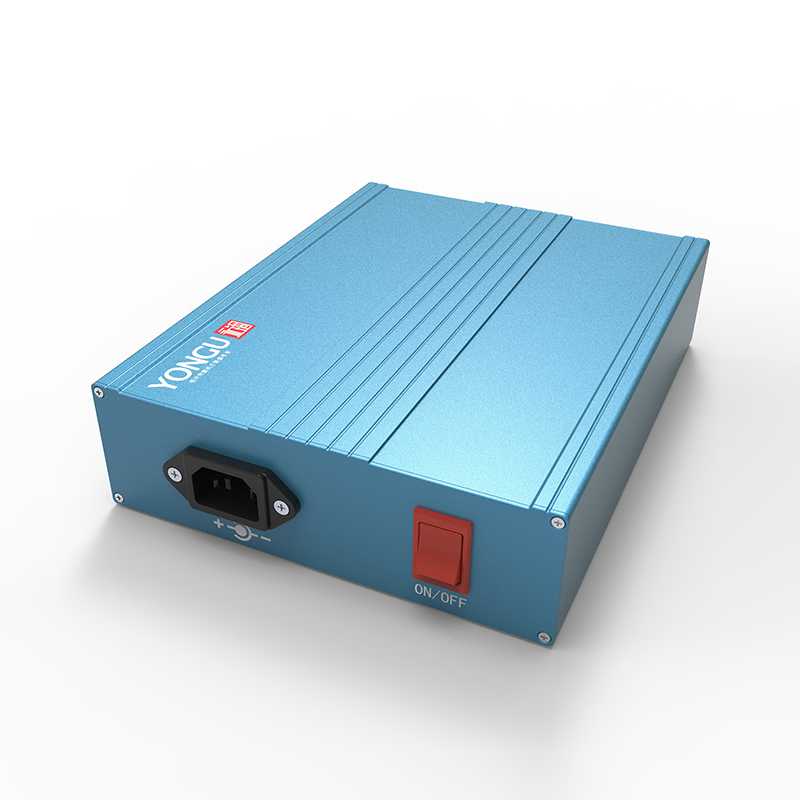

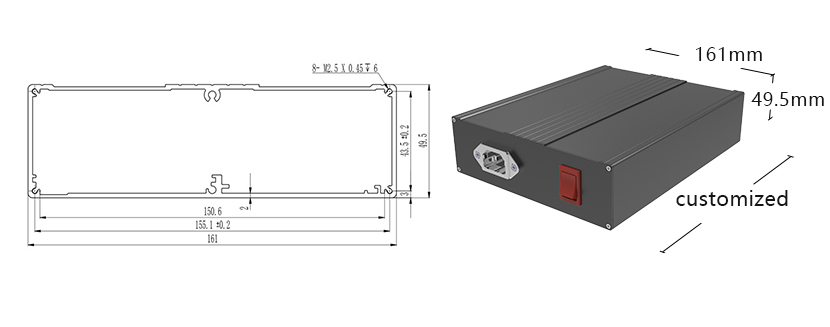

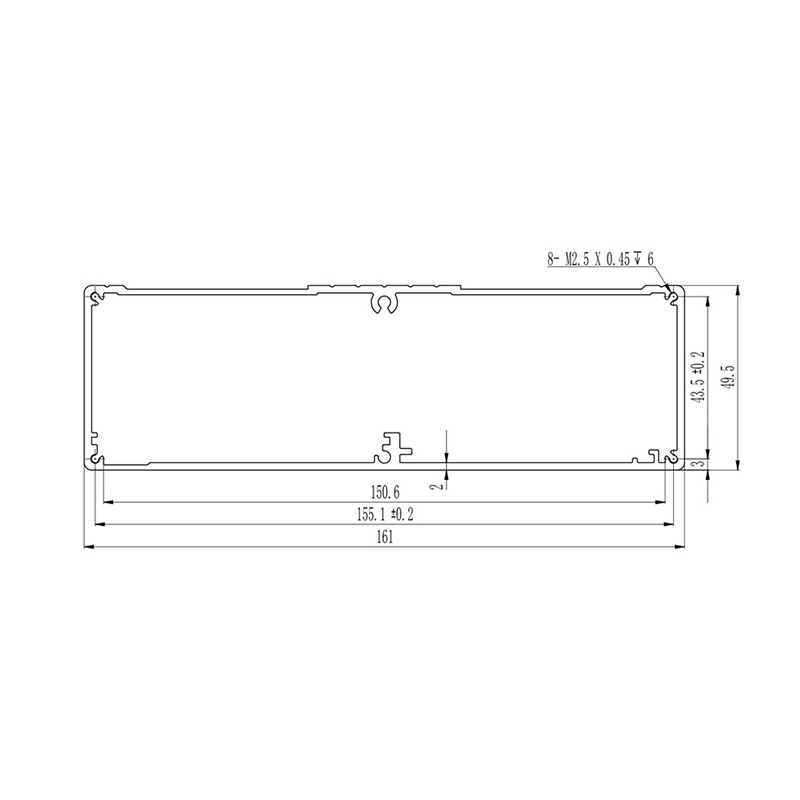

Electronics Enclosure YONGU Power System Extrusion Profit Electronic Outlet Protection Dust-Proof Aluminum 6063 Box J42 161*49.5mm

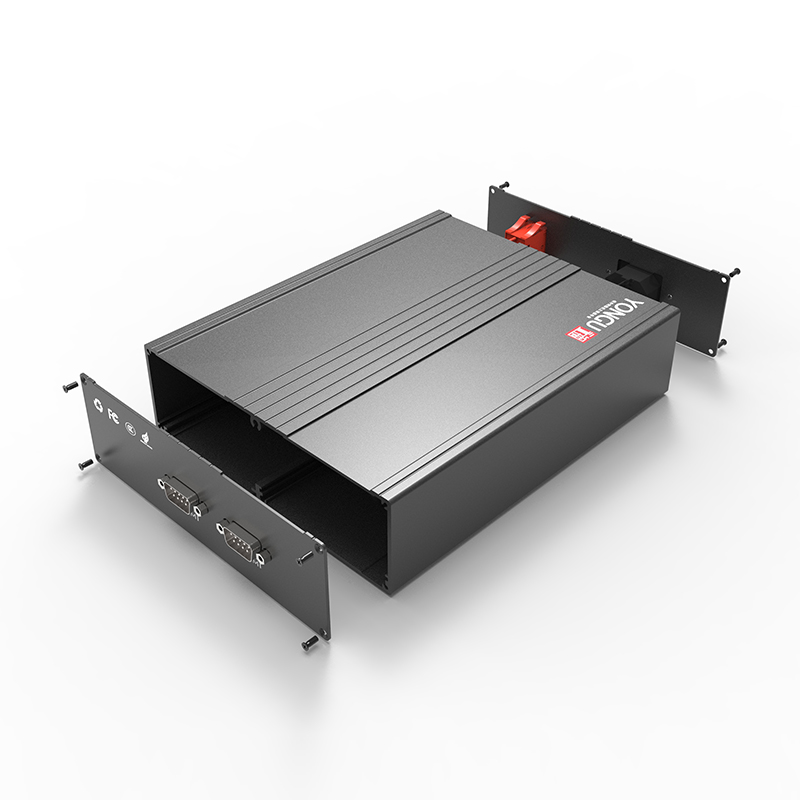

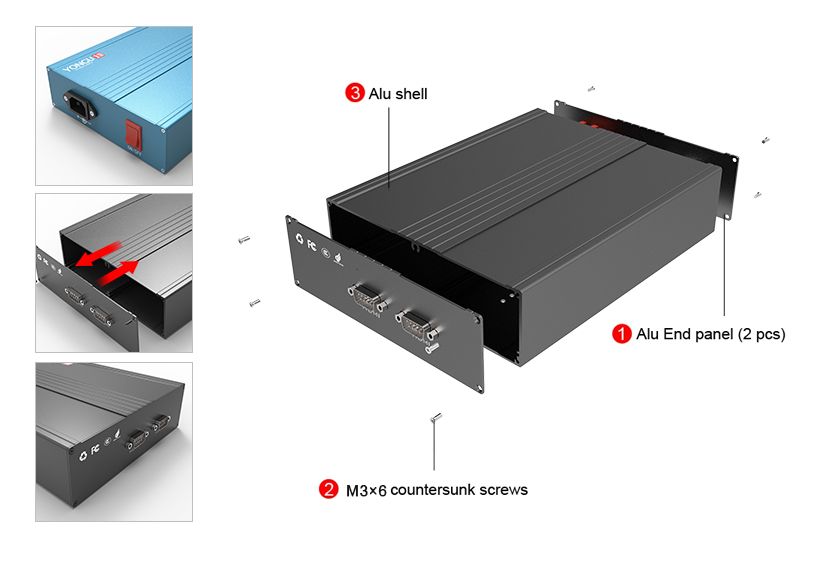

The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.The internal card slot
designis easy for pcb assembly installation. It is widely used in equipment for communication, medical, teaching experiment,
environmental monitoring and testing, industrial control,rail transit, vehicle terminal, security and protection, electronics,
instrument and meter industrial.
Superiority: 1.Designed to house P.C.boards or equipment
2.General Purpose,water-Tight,EMI shielded,or Heat Dissipation Options
3.Sandblast and brushed surface finishing options,Anodized color
4.P.C.boards mount horizontally by sliding into internal slots extruded into the enclosure body
5.Acceptable for customization:Length,cuouts,milling,L shape and panels option,thickness and panel
option,silkscreen or engraving option
electronic equipment enclosures
Waterproof Aluminum Enclosure

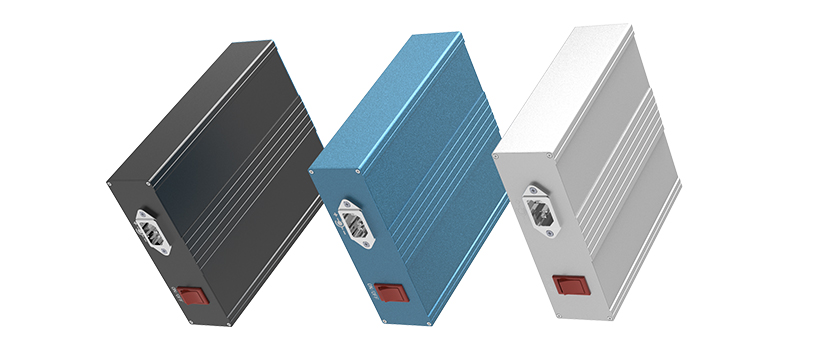

Gold, blue, black, silver, yellow, white, red, etc.
Brush, sandblast, anodize, silk-screen print
Drilling, Etching / Chemical Machining, Laser Machining, Milling
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
